Nacra F20 used buy/sell, 4 ads listing and price
The Nacra F20 is a large sports catamaran, very fast. Built for performance by the Nacra shipyard using top materials: carbon, etc. The FCS version has equipped it with foil to make it a competitor of the Flying Phantom. It is therefore among the family of sport catamarans, one of the most advanced, perfected and extreme!
4 ads «Nacra F20»
€18,300 — Nacra F20 for sale Zuid-Holland / Maasdam
€29,500 — Nacra F20 for sale Gelderland / Elburg
€5,500 — Nacra 6.0 SE (Special Edition) + Trailer for sale in Switzerland
€7,200 — Nacra F20 Carbon Mast for sale in Lille
You want to display this ad module «Nacra F20» on your site, for the class association for example. I have a plugin that allows it, contact me ✉️
🛶 Nacra F20 – Full Presentation
🔧 History & Design
The Nacra F20 is a high-performance sailing catamaran designed for speed, adrenaline, and modern sailing technology. It was introduced in the early 2010s by Nacra Sailing, a Dutch manufacturer known for building fast, reliable multihulls.

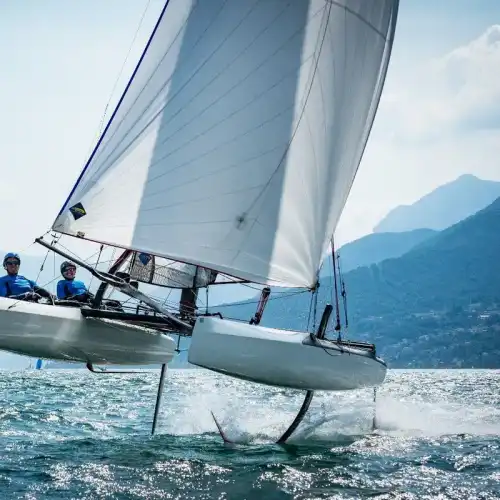

The F20 was developed as a step beyond the capabilities of the Nacra F18, especially with the introduction of the Nacra F20 Carbon FCS (Flight Control System), a foiling version equipped with L-shaped daggerboards and T-shaped rudders for full hydrofoil flight. It targets experienced sailors seeking cutting-edge performance in double-handed racing.
🧠 Naval Architecture
The F20 was designed by Nacra’s internal development team in collaboration with Morrelli & Melvin, a world-renowned American naval architecture firm known for its multihull expertise, including in the America’s Cup.
📐 Key Specifications (FCS Version)
Length: 6.20 m
Beam: 3.20 m
Weight: 180 kg
Draft: 1.60 m (with foils)
Mast Height: 9.60 m
Sail Area (Main + Jib): 21 m²
Spinnaker: 24 m²
Crew: 2 persons
Construction: Carbon / Epoxy (FCS version)
🧭 Intended Use
The Nacra F20 is built for:
High-performance racing
Double-handed foiling practice
Long-distance speed sailing
Demanding sailing conditions on open waters
In foiling mode, the boat can cruise at over 25 knots, with peak speeds surpassing 30 knots in favorable conditions.
💰 Used Boat Market
The Nacra F20 has a niche second-hand market, as it appeals mainly to expert sailors. Typical prices:
Standard F20 (non-foiling): €9,000 to €13,000
F20 Carbon FCS (foiling): €15,000 to €25,000 depending on condition and gear
Well-maintained boats retain strong value due to their rarity and build quality.
🏁 Racing Circuits
Though not as widespread as the F18, the Nacra F20 appears in:
Distance racing events (Raid des Corsaires, Round Texel, etc.)
International open regattas with foiling categories
Clubs with dedicated multihull or foiling fleets
Numbers and dimensions of "Nacra F20"
Length
6,20 m
Width
3,20 m
Weight
180 kg
Draft
1,60 m
Height
9,60 m
Sail area
21 m²
Spinaker area
24 m²
Designer
Morrelli & Melvin
Launch year
2010
